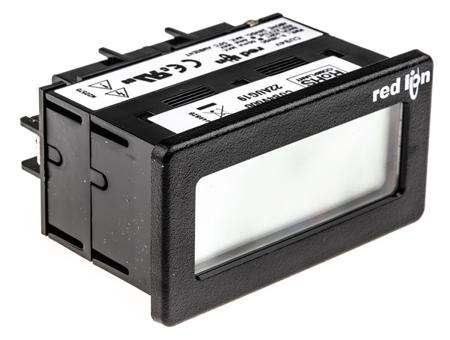

Red Lion Digital DC Voltmeter The Red Lion digital DC voltmeter is a high-quality, compact and affordable instrument designed using the latest technology. It has a 3.5 digit, LCD with 0.6in (15.2mm) high digits and a DIP switch with a selectable decimal point. The unit is constructed of a lightweight, high impact plastic case with a clear viewing window. The optional micro line/sensor power supply (MLPS1000) can be attached to the rear of an installed to provide the necessary power for the unit. The optional supply can be powered from an 85VAC to 250VAC source. This instrument is used in industrial environments. Features and Benefits Four selectable DC ranges (0mV to 199.9mV, 1.999V, 19.99V, 199.9V)
Built-in scaling provided
Auto zeroing circuit
Selectable decimal points
Wire connections made via screw clamp type terminals
Fits din standard cut-out 2.68in (68mm) x 1.30in (33mm)
9VDC to 28VDC powered
Automatic offset correction
Freely selectable decimal point
Free scaling via potentiometer Certifications NEMA 4X
IP65 rated sealed front panel bezel
UL approved
CSA certified
CE certified
cURus certified
