Output Type:
SSR, Solid State Relay, Logic
Supply Voltage:
100 → 240 V ac
Size:
48 x 48mm
Number of Inputs:
3
Number of Outputs:
1
Minimum Operating Temperature:
-10°C
Maximum Operating Temperature:
+55°C
Temperature Range:
+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -200 → +1300 (Type K Thermocouple ) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +850 (Pt100) °C
Control Type:
ON/OFF, PID, 2-PID Controller
Display Type:
11-Segment Digital Display
IP Rating:
IP00, IP20, IP66
Additional Functionality:
ON/OFF, PID Controller
Input Type:
Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range:

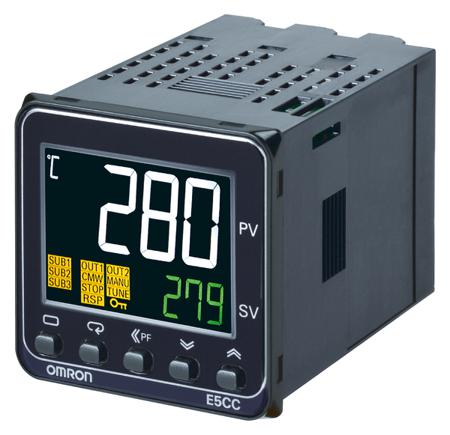

Omron E5CC
Mounting Type:
Panel Mount
Series:
E5CC
Panel Depth:
72.1mm
Termination Type:
Push In
Display Colour:
White
