1765768 Phoenix Contact
1765768 Phoenix Contact
1765768 Phoenix Contact
1765768 Phoenix Contact

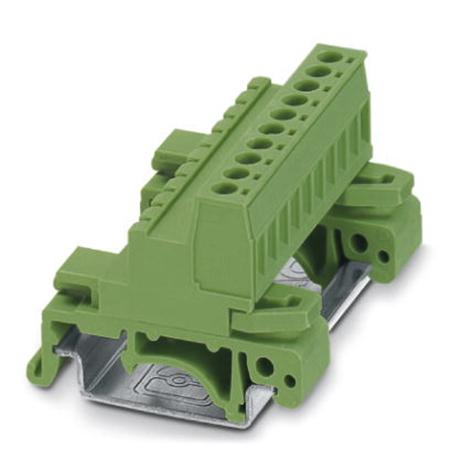

TERM BLK PLUG 10POS 29.1MM GREEN

Phoenix Contact 1765768

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1765768
Enrgtech Part No:
ET11220870
Warranty:
Manufacturer
SAR 6902.82
Checking for live stock
Current Rating:
12A
Number of Levels:
Single
Fused:
No
Standards Met:
EAC
Voltage Rating:
320 V
Series:
UMSTBHK 2.5/10-G
Colour:
Green
Termination Method:
Screw
Model Number:
UMSTBHK 2,5/10-G
American Wire Gauge:
24 → 12AWG
Minimum Operating Temperature:
-40°C
Pitch:
5mm
Cable CSA:
0.2 → 2.5mm²
Maximum Operating Temperature:
+105°C
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Plug Receptacles, Screw
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection - Ganged
Number of Positions:
10
Wire Gauge or Range - mm²:
0.2-2.5mm²
Height (Max):
1.496" (38.00mm)
REACH Status:
REACH Unaffected
Housing Color:
Green
Material Flammability Rating:
UL94 V-0
Stripping Length:
7mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
12 A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
standardLeadTime:
8 Weeks
Terminal - Width:
29.1mm
Voltage - IEC:
300 V
Features:
-
Mounting Type:
DIN Rail
Series:
COMBICON UMSTBHK
Length:
2.059" (52.30mm)
Packaging:
Bulk
Current - UL:
10 A
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
pdf icon
Instruction Sheet - 1765768(Technical Reference)
pdf icon
1765768(Datasheets)
pdf icon
Design chg 28/MAR/2022(PCN Design/Specification)
