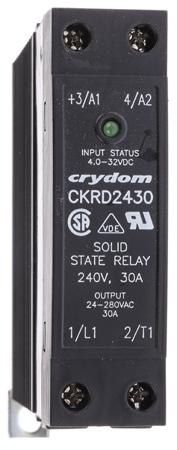

ckrd2430 Sensata Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control

Sensata | Crydom Solid-State Relay, 280g Weight, 30A Rated Load Current - CKR24 Series - CKRD2430 Use this solid-state relay from Sensata | Crydom to safely switch between loads in your electric circuits. It has a thermally conductive epoxy casing that provides resistance to impact and heat, making it a reliable choice for use in harsh environments. This device has no moving contacts, so there's minimal risk of wear, giving you long-lasting performance. A green LED indicator displays the operational status of your machinery for easy troubleshooting. You'll find this unit used in medical equipment. Features & Benefits • Wide operating voltage range between 24 and 280V AC for use in light to medium-duty applications
• Aluminium baseplate is resistant to impact and corrosion
• Zero-cross switching function to generate minimal electrical noise What's the operating temperature range of this device? This device has a broad operating temperature range between -40°C and +80°C, so it's suitable for use in demanding environments. What's the rated load current of this relay? This component has a maximum load current of 30A, making it a good choice for use in high-powered systems.

For more information please check the datasheets.

Sensata / Crydom CKRD2430 Sensata Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control

Name: Sensata Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control
Brand: Sensata / Crydom
SKU: ET16684172
Availability: InStock

Manufacturer:

Sensata / Crydom

Manufacturer Part No:

CKRD2430

Enrgtech Part No:

ET16684172

Warranty:

Manufacturer

SAR 384.28

Checking for live stock

Maximum Load Current:

30 A rms

Mounting Type:

DIN Rail

Maximum Load Voltage:

280 V rms

Maximum Control Voltage:

32 V

Switching Type:

Zero Cross

Control Voltage Range:

4 → 32 V dc

Minimum Load Current:

0.15 A

Output Device:

SCR

Load Voltage Range:

24 → 280V ac

Dimensions:

81.9 x 22.5 x 99mm

Length:

81.9mm

Operating Temperature Range:

-40 → +80°C

Datasheet-73140a1e(datasheets)

Declaration of Conformity 2014/35/EU-bac32bda(datasheets)

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)-5e3720bc(datasheets)

Installation Sheet - CKRD2430-117d8c8b(datasheets)

Line Drawing - CKRD2430-641be5a3(datasheets)

Sensata / Crydom CKRD2430 Sensata Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control
