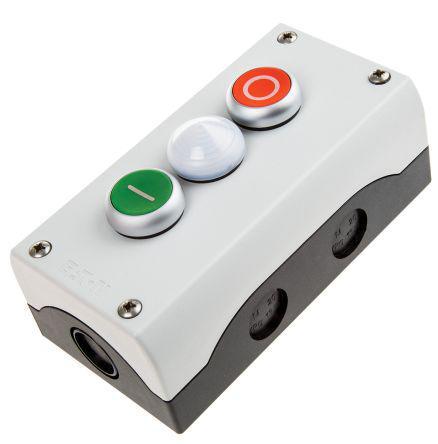

m22-i3-m2 Eaton M22 NO/NC 22mm Enclosed Push Button, IP69K 56mm Grey Plastic 153mm +70°C -25°C 3 Red/White/Green O/lamp/I 80mm

Titan Range Enclosed Pushbutton Stations Snap fitting modular range of 22.5mm control devices Up to six clip-together contact elements per actuator Stayput actuators convert with simple adaptor to spring return Flush, surface or rear mounting Approvals UL; CSA Standards IEC/EN60947 Approvals UL; CSA; IEC/EN60947

For more information please check the datasheets.

Eaton M22 NO/NC 22mm Enclosed Push Button, IP69K 56mm Grey Plastic 153mm +70°C -25°C 3 Red/White/Green O/lamp/I 80mm

Name: Eaton M22 NONC 22mm Enclosed Push Button, IP69K 56mm Grey Plastic 153mm +70°C -25°C 3 RedWhiteGreen OlampI 80mm
Brand: Eaton
SKU: ET14111648
Availability: InStock

Manufacturer:

Eaton

Manufacturer Part No:

M22-I3-M2

Enrgtech Part No:

ET14111648

Warranty:

Manufacturer

SAR 496.75

Checking for live stock

Maximum DC Voltage:

230V

Maximum AC Voltage:

500V

Minimum Operating Temperature:

-25°C

Maximum Current:

4 A

IP Rating:

IP69K

Series:

M22

Contact Configuration:

NO/NC

Length:

153mm

Push Button Marking:

O/lamp/I

Enclosure Material:

Plastic

Push Button Actuation:

Momentary

Width:

80mm

Datasheet(Technical Reference)

Eaton M22 NO/NC 22mm Enclosed Push Button, IP69K 56mm Grey Plastic 153mm +70°C -25°C 3 Red/White/Green O/lamp/I 80mm
