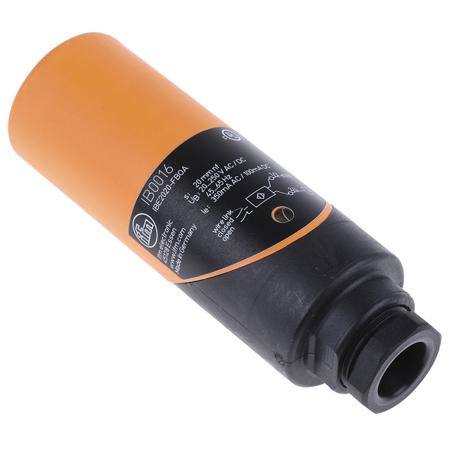

ib0016 ifm electronic NO/NC Inductive Sensor 98mm Length, 20 → 250 V ac/dc supply voltage , IP65 Rating

Ø 20 mm and 34 mm Switching distance 10 mm (nb) for Ø 20 mm type Switching distance 20 mm (nb) for Ø 34 mm type AC / DC types for direct and alternating voltage N/O / N/C output function programmable for AC / DC types Cable outlet can be mounted straight or angled at 90° Connection via connection terminals Type Ø 20 mm DC also available with 2 m PVC cable Fixing bracket included Output: AC / DC-type: 2-conductor, N/O / N/C progr. Ø 20 mm DC type: 3-conductor PNP, N/O Ø 34 mm DC type: 3-conductor PNP, N/O / N/C progr. Operating voltage: AC / DC type: 20 → 250 Vac / Vdc, DC type: 10 → 36 Vdc Current carrying capacity: AC / DC type: 350 mA (AC) / 100 mA (DC), DC type: 250 mA (DC) Ambient temp.: -25 °C → +80 °C Protection rating: IP65 Connection diagram: See AC / DC universal, DC PNP

For more information please check the datasheets.

ifm electronic NO/NC Inductive Sensor 98mm Length, 20 → 250 V ac/dc supply voltage , IP65 Rating

Name: ifm electronic NONC Inductive Sensor 98mm Length, 20 → 250 V acdc supply voltage , IP65 Rating
Brand: ifm electronic
SKU: ET13828988
Availability: InStock

Manufacturer:

ifm electronic

Manufacturer Part No:

IB0016

Enrgtech Part No:

ET13828988

Warranty:

Manufacturer

SAR 687.12

Checking for live stock

Output Function:

NO/NC

Switching Frequency:

50 Hz

Housing Material:

PBT

Width:

34mm

Supply Voltage:

20 → 250 V ac/dc

Maximum AC Voltage:

250V

Shielding:

Unshielded

Maximum Switching Frequency:

50Hz

Detection Range:

20 mm

Body Style:

Threaded Barrel

Maximum Operating Temperature:

+80°C

Minimum Operating Temperature:

-25°C

Datasheet(Technical Reference)

ifm electronic NO/NC Inductive Sensor 98mm Length, 20 → 250 V ac/dc supply voltage , IP65 Rating

Product Reviews
