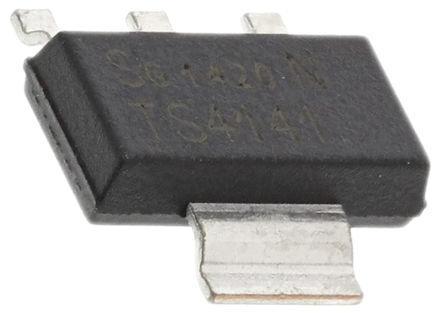

Infineon BTS4141NHUMA1High Side, High Side Switch Power Switch IC 3 + Tab-Pin, SOT-223

Infineon BTS4141NHUMA1High Side, High Side Switch Power Switch IC 3 + Tab-Pin, SOT-223

Manufacturer:

Manufacturer Part No:

BTS4141NHUMA1

Enrgtech Part No:

ET16792666

Warranty:

Manufacturer

SAR 0.82

Checking for live stock

Power Switch Topology:

High Side

Power Switch Type:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1727061&DisplayLogo=False

Switch On Resistance:

320mΩ

Maximum Operating Supply Voltage:

45 V

Number of Outputs:

Maximum Operating Current:

0.7A

Mounting Type:

Surface Mount

Package Type:

SOT-223

Pin Count:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1660664&DisplayLogo=False

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C

Dimensions:

VersaBlade Connector Housing
