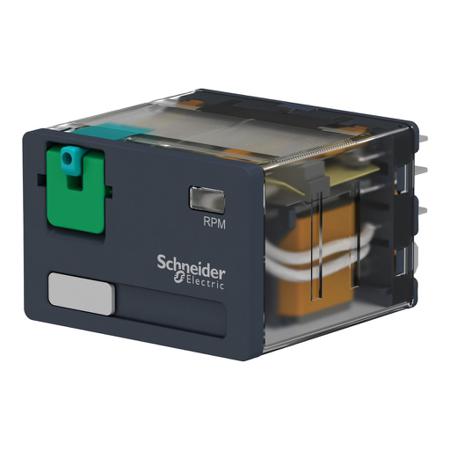

rpm41bd Schneider Electric 4PDT DIN Rail Non-Latching Relay, 24V dc Coil, 15 A
rpm41bd Schneider Electric 4PDT DIN Rail Non-Latching Relay, 24V dc Coil, 15 A
rpm41bd Schneider Electric 4PDT DIN Rail Non-Latching Relay, 24V dc Coil, 15 A
rpm41bd Schneider Electric 4PDT DIN Rail Non-Latching Relay, 24V dc Coil, 15 A

RPM Series The RPM power relay range includes sockets with mixed contact terminals and protection modules. 15 A relays with 1, 2, 3 and 4 CO (SPDT, DPDT, 3PDT and 4PDT) contacts Protection modules (diode, RC circuit or varistor) or 1 timer module (for use only with 3-pole or 4-pole sockets) Metal hold-down clip for single-contact relays

Schneider Electric 4PDT DIN Rail Non-Latching Relay, 24V dc Coil, 15 A

Manufacturer:
Schneider Electric
Manufacturer Part No:
RPM41BD
Enrgtech Part No:
ET13863639
Warranty:
Manufacturer
SAR 194.36
Checking for live stock
Coil Voltage:
24V dc
Application:
Power
Terminal Type:
Plug In
Coil Resistance:
388Ω
Life:
100000 (Electrical) Operations, 10000000 (Mechanical) Operations
Coil Power:
2W
Maximum Switching Voltage DC:
250V dc
Isolation Coil To Contact:
2.5kV ac
Maximum Operating Temperature:
+55°C
Switching Current:
15A
Minimum Operating Temperature:
-40°C
Latching:
No
Contact Configuration:
4PDT
Depth:
41mm
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Harmony Relay RP
Length:
40mm
Height:
27mm
Maximum Switching Voltage AC:
250V
Maximum Switching Power AC:
3.75 kVA
Number of Poles:
4
Contact Material:
Silver Alloy
Must Release Voltage:
2.4 VDC
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 55°C
Approval Agency:
CSA, EAC, UL
Coil Resistance:
303 Ohms
Coil Current:
79.2 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 28VDC - Max
Seal Rating:
-
Must Operate Voltage:
19.2 VDC
Relay Type:
General Purpose
Load - Max Switching:
3750VA, 420W
Contact Form:
4PDT (4 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
7 Weeks
Contact Rating (Current):
15 A
Features:
Lighted Indicator
Mounting Type:
Socketable
Grade:
-
Series:
Harmony
Release Time:
20 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
RPM41
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
RPM41BD Datasheet(Datasheets)
