2906223 Phoenix Contact
2906223 Phoenix Contact
2906223 Phoenix Contact
2906223 Phoenix Contact
2906223 Phoenix Contact

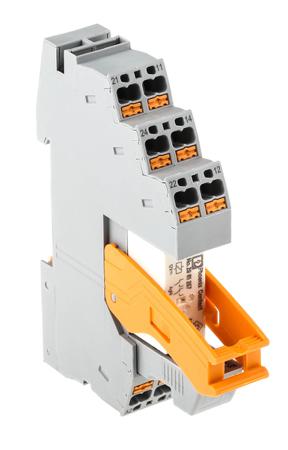

RELAY GEN PURPOSE DPDT 8A 12V

Phoenix Contact 2906223

Manufacturer:
Phoenix Contact
Manufacturer Part No:
2906223
Enrgtech Part No:
ET11336086
Warranty:
Manufacturer
SAR 166.77
Checking for live stock
Dimensions:
75 x 16 x 93mm
Coil Voltage:
12V dc
Turn On Time:
8ms
Turn Off Time:
10ms
Input Current:
33mA
Life:
3 x 10^7 Cycles
Standards Met:
DIN EN 50178, IEC 62103
Switching Voltage:
5 → 250V ac/dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Plug In, Screw
Relay Type:
Power Contact Relay
Operating Temperature Range:
-40 → +70°C
Contact Configuration:
DPDT
Depth:
16mm
Relay Switching Classification:
Interface Relay Module
Special Features:
Degree of protection IP20
Mounting Type:
DIN Rail
Series:
RIF-1-RPT-LDP-12DC/2X21
Input Voltage Range:
9.6 → 16.8V dc
Accessory Type:
Relay Module
Length:
75mm
Height:
93mm
Minimum Operating Temperature:
-40°C
Minimum Input Voltage:
9.6V
Number of Poles:
1
Maximum Input Voltage:
12V dc
Contact Material:
Silver Alloy
Must Release Voltage:
-
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
CSA
Coil Resistance:
364 Ohms
Coil Current:
33 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
8 ms
Qualification:
-
standardLeadTime:
6 Weeks
Contact Rating (Current):
8 A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Grade:
-
Series:
RIF
Release Time:
10 ms
Packaging:
Bulk
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29062
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
pdf icon
EU Conformity(Technical Reference)
pdf icon
2906223 Datasheet(Datasheets)
