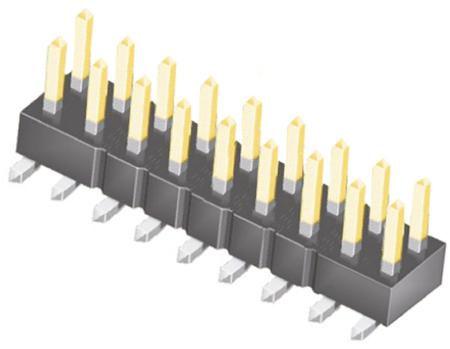

tsm-109-01-l-dv Samtec TSM Series Straight Surface Pin Header, 18 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
tsm-109-01-l-dv Samtec TSM Series Straight Surface Pin Header, 18 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

Samtec TSM Series Straight Surface Pin Header, 18 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

Samtec TSM Series Straight Surface Pin Header, 18 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

Manufacturer:
Samtec
Manufacturer Part No:
TSM-109-01-L-DV
Enrgtech Part No:
ET100017070
Warranty:
Manufacturer
SAR 2.32 SAR 2.32
Checking for live stock
Series:
TSM
Product Type:
Pin Header
Pitch:
2.54mm
Current:
7A
Housing Material:
Liquid Crystal Polymer
Number of Contacts:
18
Number of Rows:
2
Orientation:
Straight
Shrouded/Unshrouded:
Unshrouded
Mount Type:
Surface
Connector System:
Board-to-Board, Wire-to-Board
Contact Plating:
Gold
Contact Material:
Phosphor Bronze
Minimum Operating Temperature:
-55°C
Row Pitch:
2.54mm
Termination Type:
Solder
Contact Gender:
Male
Maximum Operating Temperature:
125°C
Standards/Approvals:
No
Mating Pin Length:
5.84mm
Voltage:
475 V
pdf icon
0900766b81157e6c.pdf(datasheets)
pdf icon
0900766b81157f05.pdf(datasheets)
pdf icon
0900766b8115807a.pdf(datasheets)
pdf icon
0900766b8115807b.pdf(datasheets)
