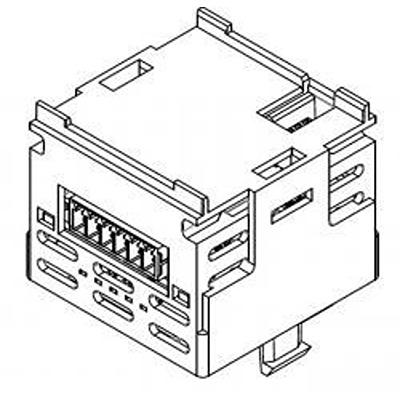

The Red Lion Dual Relay Module is designed to provide set point outputs. It features dual FORM C relays. FORM C relays have both normally open and normally closed contacts, offering versatility in control applications. The module provides substantial isolation, with a rating of 3000 Vrms for 1 minute. When one relay is energized, the normally open contact can handle a maximum of 5 Amps at either 250 VAC or 30 VDC, specifically for resistive loads. When one relay is energized, the normally closed contact can handle a maximum of 3 Amps at either 250 VAC or 30 VDC, also for resistive loads. CE Approved
RoHS compliant
Rugged IP25 enclosure
Emission CISPR 11 Class A
EN 61326 1 immunity to industrial locations
