Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

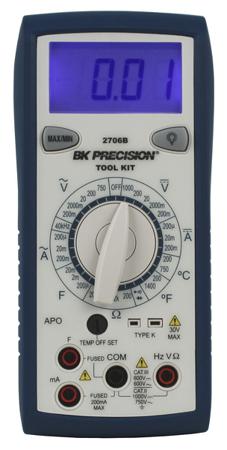

BK2706B
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Absolute Maximum DC Current Measurement:
200mA dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Current Measurement:
200mA ac
Absolute Maximum Resistance Measurement:
20MΩ
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum Capacitance Measurement:
20mF
True RMS:
No
Absolute Maximum Temperature Measurement:
+1400 °F, +750°C
Maximum Frequency:
500Hz
DC Current Measurement Resolution:
0.1µA dc
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
0.1mV ac
Resistance Measurement Resolution:
100mΩ
DC Voltage Measurement Resolution:
0.1mV dc
Capacitance Measurement Resolution:
0.1µF
Safety Category Level:
CAT II, CAT III
Best DC Current Accuracy:
±1% + 1 Digits
Minimum Operating Temperature:
0°C
Best Resistance Measurement Accuracy:
±2% + 4 Digits
Length:
78mm
Maximum Operating Temperature:
+50°C
Battery Type:
9V
Best AC Current Accuracy:
±1.5% + 5 Digits
Safety Category Voltage:
600 V, 750 V, 1000V
Width:
42.5mm
Best DC Voltage Accuracy:
±0.5% + 1 Digits
Weight:
285g
Dimensions:
78 x 42.5 x 165mm
Height:
165mm
Best Capacitance Measurement Accuracy:
±4% +10 Digits
Best AC Voltage Accuracy:
±2% + 5 Digits
