Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

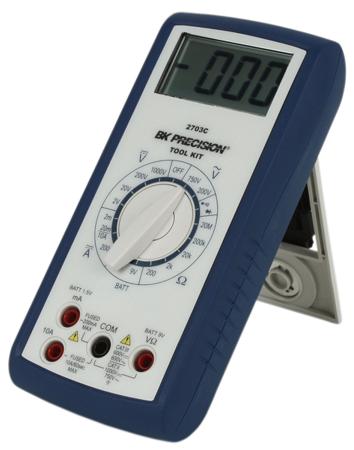

BK2703C
Functions Measured:
AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Absolute Maximum Resistance Measurement:
20MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
750V ac
True RMS:
No
Maximum Frequency:
500Hz
DC Current Measurement Resolution:
1µA dc
DC Voltage Measurement Resolution:
1mV dc
Resistance Measurement Resolution:
100mΩ
AC Voltage Measurement Resolution:
100mV ac
Safety Category Level:
CAT II, CAT III
Minimum Operating Temperature:
0°C
Width:
42.5mm
Height:
165mm
Weight:
285g
Best DC Current Accuracy:
±3% + 3 Digits
Best DC Voltage Accuracy:
±1.2% + 1 Digits
Safety Category Voltage:
600 V, 750 V, 1000V
Dimensions:
78 x 42.5 x 165mm
Battery Type:
9V
Best AC Voltage Accuracy:
±2% + 10 Digits
Best Resistance Measurement Accuracy:
±3% + 5 Digits
Length:
78mm
Maximum Operating Temperature:
+50°C
