Multimeter Type:
Handheld
Model Number p:

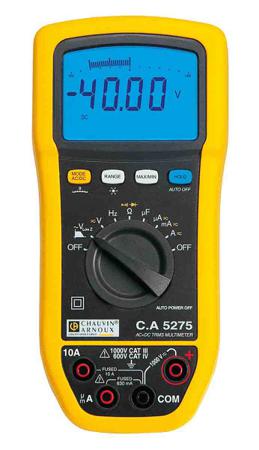

CA 5275
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Capacitance Measurement:
60mF
True RMS:
Yes
Maximum Frequency:
20kHz
AC Current Measurement Resolution:
1µA ac
DC Current Measurement Resolution:
1µA dc
AC Voltage Measurement Resolution:
0.01mV ac
Resistance Measurement Resolution:
100mΩ
DC Voltage Measurement Resolution:
0.01mV dc
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Best DC Voltage Accuracy:
0.09% + 2 cts
Best AC Voltage Accuracy:
±1 % + 3 digits
Minimum Operating Temperature:
-10°C
Height:
190mm
Weight:
400g
Best DC Current Accuracy:
±0.8 % + 2 digits
Best AC Current Accuracy:
±1 % + 3 Digits
Width:
90mm
Best Temperature Measurement Accuracy:
±0.5 % + 2 °C
Dimensions:
90 x 45 x 190mm
Best Capacitance Measurement Accuracy:
±1 % + 5 digits
Length:
45mm
Battery Type:
9 V, IEC 6LR61
Safety Category Voltage:
CAT III 1000 V, CAT IV 600V
Best Resistance Measurement Accuracy:
±1 % + 2 digits
Maximum Operating Temperature:
+50°C
