Multimeter Type:
Handheld
Model Number p:

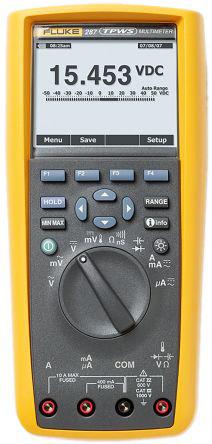

287
Display Type:
Digital
Calibrated:
RSCAL
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
500MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+1350°C
Absolute Maximum Capacitance Measurement:
100mF
Maximum Frequency:
100kHz
DC Voltage Measurement Resolution:
1µV dc
Safety Category Level:
CAT III, CAT IV
Best Temperature Measurement Accuracy:
±1 %
Battery Type:
AA x 6
Safety Category Voltage:
600 V, 1000V
Best Resistance Measurement Accuracy:
±0.05 %
Minimum Operating Temperature:
-20°C
Height:
222mm
Weight:
870.9g
Best DC Voltage Accuracy:
±0.025 %
Length:
60mm
Maximum Operating Temperature:
+55°C
Dimensions:
60 x 102 x 222mm
Best Capacitance Measurement Accuracy:
±1 %
Best AC Voltage Accuracy:
±0.025 %
Best AC Current Accuracy:
±0.15 %
Width:
102mm
Best DC Current Accuracy:
±0.15 %
