Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

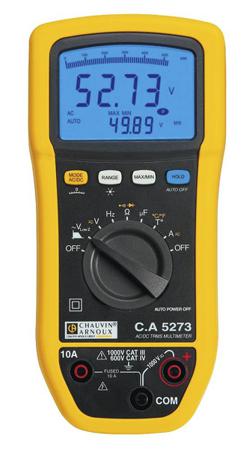

CA 5273
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum DC Current Measurement:
20A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Temperature Measurement:
+1200°C
True RMS:
Yes
Absolute Maximum Capacitance Measurement:
60mF
Maximum Frequency:
Keyboard Switch
AC Current Measurement Resolution:
0.001A ac
DC Current Measurement Resolution:
0.001A dc
AC Voltage Measurement Resolution:
0.1mV ac
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1°C
Safety Category Level:
CAT III, CAT IV
Battery Type:
9 V, IEC 6LR61
Safety Category Voltage:
CAT III 1000 V, CAT IV 600V
Best AC Voltage Accuracy:
±1.2 % + 3 digits
Best Temperature Measurement Accuracy:
±0.5 % + 2 °C
Best DC Voltage Accuracy:
0.2% + 2 cts
Maximum Operating Temperature:
+50°C
Height:
190mm
Dimensions:
90 x 45 x 190mm
Best Resistance Measurement Accuracy:
±1 % + 2 digits
Best Capacitance Measurement Accuracy:
±1 % + 5 digits
Minimum Operating Temperature:
-10°C
Weight:
400g
Best DC Current Accuracy:
±0.8 % + 3 digits
Best AC Current Accuracy:
±1.2 % + 3 Digits
Width:
90mm
Length:
45mm
