Multimeter Type:
Handheld

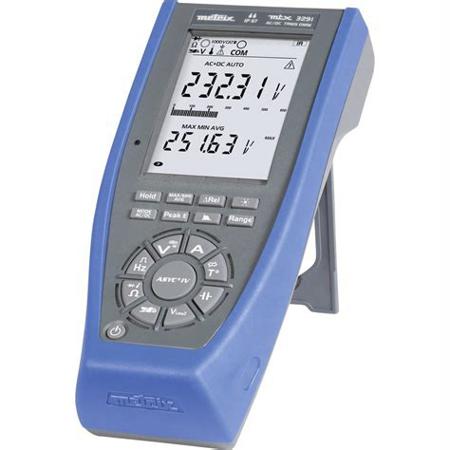

Model Number p:
MTX 3291
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, Clamp Function, Continuity, DC Current, DC Voltage, DELTA REL, Diode, Frequency, MAX/MIN/AVG/PEAK, PWM Filter, Resistance, Temperature
Absolute Maximum DC Current Measurement:
20A dc
Absolute Maximum AC Current Measurement:
20A ac
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Temperature Measurement:
+800°C
Absolute Maximum Capacitance Measurement:
60mF
True RMS:
Yes
Moulded/Fold Flat:
USB
Maximum Frequency:
600kHz
AC Current Measurement Resolution:
0.01µA ac
DC Current Measurement Resolution:
0.01µA dc
AC Voltage Measurement Resolution:
0.001mV ac
DC Voltage Measurement Resolution:
0.001mV dc
Resistance Measurement Resolution:
10mΩ
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Height:
47.1mm
Dimensions:
196 x 90 x 47.1mm
Best AC Voltage Accuracy:
0.5%+25 digits
Minimum Operating Temperature:
0°C
Weight:
570g
Best DC Current Accuracy:
0.8% + 20 digits
Length:
196mm
Best Capacitance Measurement Accuracy:
1% + 5 digits
Best Temperature Measurement Accuracy:
0.1%+5°C
Best DC Voltage Accuracy:
0.05% + 25 digits
Width:
90mm
Safety Category Voltage:
300 V, 600 V, 1000V
Battery Type:
AA, NiMH
Best AC Current Accuracy:
1.2% + 25 digits
Best Resistance Measurement Accuracy:
0.2%+20 digits
Maximum Operating Temperature:
+40°C
