Multimeter Type:
Digital
Display Type:
Digital
Model Number p:

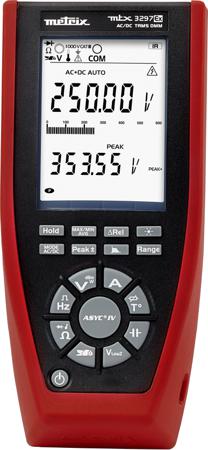

MTX3297
Functions Measured:
AC Current, AC Voltage, Conductance, Capacitance, Continuity, DC Current, DC Voltage, Duty cycle, Diode, dBm, Frequency, Pulse width, Resistance, Resistive power, Temperature
Calibrated:
UKAS
Absolute Maximum DC Current Measurement:
20A dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Current Measurement:
20A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Temperature Measurement:
+800°C
Absolute Maximum Capacitance Measurement:
60mF
Moulded/Fold Flat:
Optical, Usb
Maximum Frequency:
200kHz
AC Current Measurement Resolution:
0.01µA
DC Current Measurement Resolution:
0.01µA
DC Voltage Measurement Resolution:
0.001mV
AC Voltage Measurement Resolution:
0,001mV
Resistance Measurement Resolution:
0.01 Ω
Application:
Electrical Measurement Work in Explosive Ex Zones ATEX
Capacitance Measurement Resolution:
0.001nF
Safety Category:
ATEX, 1000V CAT III, 600V CAT IV
Safety Category Level:
ATEX, CAT IV
Temperature Measurement Resolution:
0.1°C
Hazardous Area Certification:
ATEX
Battery Type:
4 x AA/FR6 Li-FeS2 Ex-qualified batteries
Maximum Operating Temperature:
55°C
Best Resistance Measurement Accuracy:
0.2 % ± 20 D
Minimum Operating Temperature:
-10°C
Height:
47.1mm
Best DC Voltage Accuracy:
0.05 % + 25 D
Best Temperature Measurement Accuracy:
0.001
Dimensions:
196 x 90 x 47.1mm
Best Capacitance Measurement Accuracy:
1 % ± 10 D
Best DC Current Accuracy:
0.8 % ± 20 D
Safety Category Voltage:
600V
Weight:
715g
Length:
196mm
Width:
90mm
Best AC Current Accuracy:
1.0 % + 25 D
Best AC Voltage Accuracy:
0.05 % + 25 D
