Multimeter Type:
Handheld
Model Number p:

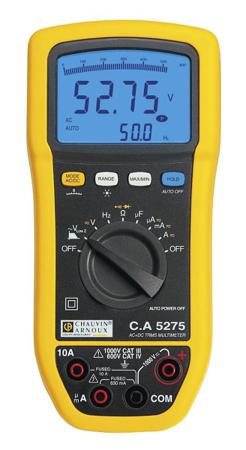

CA 5275
Display Type:
Digital
Calibrated:
RSCAL
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Capacitance Measurement:
60mF
True RMS:
Yes
Maximum Frequency:
10kHz
DC Current Measurement Resolution:
1µA dc
AC Current Measurement Resolution:
1µA ac
DC Voltage Measurement Resolution:
0.01mV dc
AC Voltage Measurement Resolution:
0.01mV ac
Resistance Measurement Resolution:
100mΩ
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Weight:
400g
Width:
45mm
Length:
90mm
Dimensions:
90 x 45 x 190mm
Safety Category Voltage:
600 V, 1000V
Height:
190mm
Battery Type:
9V
Best DC Voltage Accuracy:
0.09% + 2 cts
