Multimeter Type:
Handheld
Model Number p:

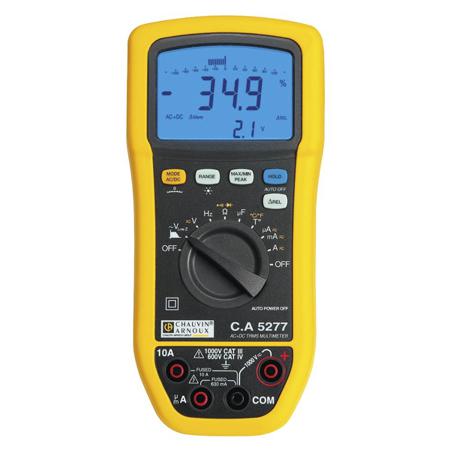

CA 5277
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature
Calibrated:
UKAS
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Temperature Measurement:
+1200°C
Absolute Maximum Capacitance Measurement:
60mF
True RMS:
Yes
Maximum Frequency:
10kHz
AC Current Measurement Resolution:
1µA ac
DC Current Measurement Resolution:
1µA dc
AC Voltage Measurement Resolution:
0.01mV ac
Resistance Measurement Resolution:
100mΩ
DC Voltage Measurement Resolution:
0.01mV dc
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1°C
Best DC Voltage Accuracy:
0.09% + 2 cts
Height:
190mm
Width:
45mm
Length:
90mm
Safety Category Voltage:
600 V, 1000V
Dimensions:
90 x 45 x 190mm
Weight:
400g
Battery Type:
9V
