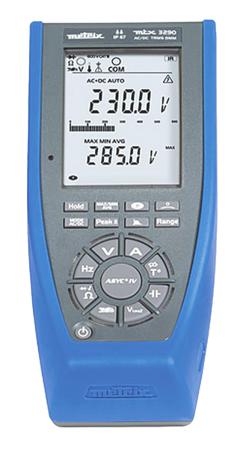

Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:
3290
Calibrated:
RSCAL
Functions Measured:
AC Current, AC Voltage, Capacitance, Clamp Function, Continuity, DC Current, DC Voltage, DELTA REL, Diode, Frequency, MAX/MIN/AVG/PEAK, PWM Filter, Resistance, Temperature
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
20A dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum AC Current Measurement:
20A ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Capacitance Measurement:
60mF
Absolute Maximum Temperature Measurement:
+800°C
True RMS:
Yes
Maximum Frequency:
600kHz
DC Current Measurement Resolution:
0.01µA dc
AC Current Measurement Resolution:
0.01µA ac
Resistance Measurement Resolution:
10mΩ
AC Voltage Measurement Resolution:
0.001mV ac
DC Voltage Measurement Resolution:
0.01mV dc
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Dimensions:
196 x 90 x 47.1mm
Best Temperature Measurement Accuracy:
+0.1 %
Best DC Voltage Accuracy:
0.3 %
Height:
47.1mm
Best DC Current Accuracy:
0.8 %
Maximum Operating Temperature:
+40°C
Safety Category Voltage:
300 V, 600V
Battery Type:
AA, NiMH
Weight:
570g
Best AC Voltage Accuracy:
0.8 %
Length:
196mm
Best AC Current Accuracy:
1.2 %
Width:
90mm
Minimum Operating Temperature:
0°C
Best Resistance Measurement Accuracy:
0.5 %
