Multimeter Type:
Handheld
Model Number p:

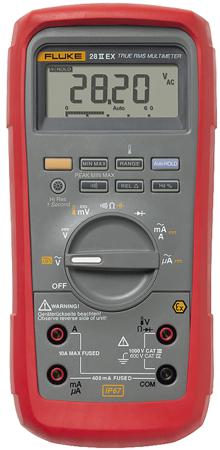

28EX
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
50MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Capacitance Measurement:
9.999F
True RMS:
Yes
Absolute Maximum Temperature Measurement:
+1090°C
Maximum Frequency:
200kHz
DC Current Measurement Resolution:
0.01A dc
AC Current Measurement Resolution:
0.01A ac
DC Voltage Measurement Resolution:
1V dc
Resistance Measurement Resolution:
10kΩ
AC Voltage Measurement Resolution:
1V ac
Safety Category Level:
CAT IV
Hazardous Area Certification:
ATEX
Capacitance Measurement Resolution:
1µF
Temperature Measurement Resolution:
0.1°C
Height:
45.7mm
Best DC Current Accuracy:
±0.2% + 4 Digits
Maximum Operating Temperature:
+50°C
Best DC Voltage Accuracy:
±0.05 % + 1 Digit
Width:
100mm
Weight:
700g
Best AC Voltage Accuracy:
±0.7% + 4 Digits
Best Capacitance Measurement Accuracy:
±1% + 2 Digits
Length:
213.3mm
Dimensions:
213.3 x 100 x 45.7mm
Best Temperature Measurement Accuracy:
±1 % + 10 °C
Best AC Current Accuracy:
±1% + 2 Digits
Best Resistance Measurement Accuracy:
±0.2 % + 1 Digits
Safety Category Voltage:
600V
Battery Type:
AAA
Minimum Operating Temperature:
-15°C
