Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

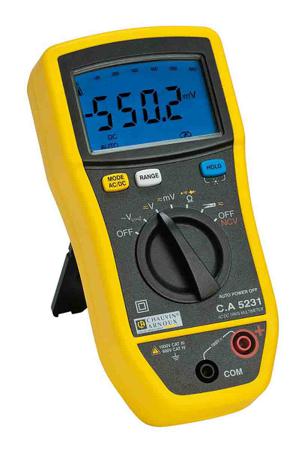

CA 5231
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, NCV Non contact voltage, Resistance, Temperature
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
600A dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Current Measurement:
600A ac
True RMS:
Yes
Maximum Frequency:
3kHz
AC Current Measurement Resolution:
0.1A ac
DC Current Measurement Resolution:
0.1A dc
Resistance Measurement Resolution:
100mΩ
DC Voltage Measurement Resolution:
0.01mV dc
AC Voltage Measurement Resolution:
0.01mV ac
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
10pF
Width:
75mm
Best AC Current Accuracy:
±2 % + 3 Digits
Best AC Voltage Accuracy:
±2 % + 3 digits
Best Capacitance Measurement Accuracy:
±3.5 % + 4 digits
Dimensions:
155 x 75 x 75mm
Safety Category Voltage:
CAT III 1000 V, CAT IV 600V
Maximum Operating Temperature:
+50°C
Length:
75mm
Best DC Voltage Accuracy:
±0.2 % + 2 digits
Best DC Current Accuracy:
±2.5 % + 12 digits
Best Resistance Measurement Accuracy:
±0.3 % + 4 digits
Minimum Operating Temperature:
0°C
Height:
155mm
Weight:
320g
Battery Type:
9 V, IEC 6LR61
