Multimeter Type:
Handheld
Model Number p:

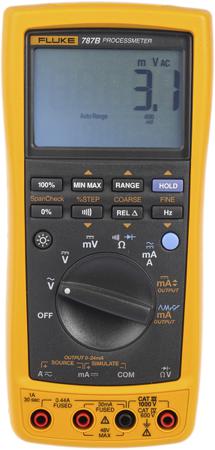

787B
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Diode, Loop, Resistance
Absolute Maximum DC Current Measurement:
1A dc
Absolute Maximum AC Current Measurement:
1A ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum Resistance Measurement:
40MΩ
True RMS:
Yes
Maximum Frequency:
19.99kHz
DC Current Measurement Resolution:
0.001mA dc
AC Current Measurement Resolution:
0.001A ac
AC Voltage Measurement Resolution:
0.1mV ac
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Safety Category Level:
CAT III, CAT IV
Best Resistance Measurement Accuracy:
±0.2 % of 2 Reading + Count
Battery Type:
AA Alkaline IEC/EN LR6
Safety Category Voltage:
600 V, 1000V
Best DC Current Accuracy:
±0.05 % of 2 Reading + Count
Weight:
610g
Height:
203mm
Minimum Operating Temperature:
-20°C
Best AC Voltage Accuracy:
±0.7 % of 4 Reading + Count
Best DC Voltage Accuracy:
±0.1 % of 1 Reading + Count
Dimensions:
100 x 50 x 203mm
Length:
100mm
Width:
50mm
Best AC Current Accuracy:
±1 % of 2 Reading + Count
Maximum Operating Temperature:
+55°C
