Loop Impedance Test Type:
2 Wire, 3 Wire
Calibrated:
RSCAL
Automatic RCD Test:
Yes

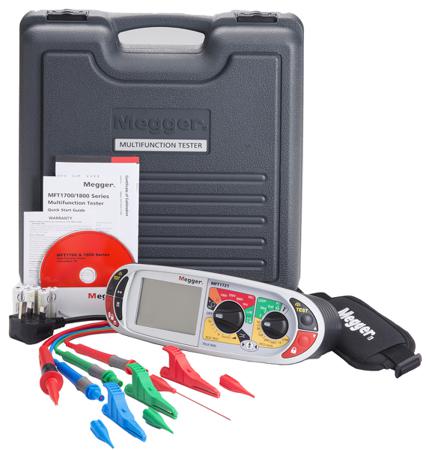

Model Number p:
MFT1721
RCD Ramp Test:
Yes
Non-Tripping:
Yes
Insulation Test Voltage:
100 V, 250 V, 500 V, 1000V
Maximum Voltage Measurement:
600V
Test Type:
Continuity
Earth Resistance Measurement:
Yes
Downloadable Data:
Yes
Interface Type:
Wireless
Continuity Test Current:
200mA
RCD Test Type:
A, AC, B, S
IP Rating:
IP54
Test Standards:
EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007
Minimum Continuity Resistance:
0.01Ω
Continuity Range:
0.01 → 99.9 kΩ
Length:
85mm
Power Source:
Battery
Width:
235mm
Voltage Measurement Range:
10 → 600V
Safety Category Voltage:
300 V, 600 V
Battery Type:
AA Alkaline
Maximum Operating Temperature:
+55°C
Dimensions:
85 x 235 x 150mm
Display Type:
LCD
Safety Category:
CAT III 600 V, CAT IV 300 V
Operating Temperature Range:
-10 → +55 °C
Minimum Operating Temperature:
-10°C
Height:
150mm
Plug Type:
BS 1363, LT 300-EN-BS
Maximum Continuity Resistance:
99.9kΩ
Safety Category Level:
CAT III, CAT IV
Weight:
1 (with Battery; Excluding Case)kg
