Loop Impedance Test Type:
Phase to Earth, Phase to Neutral
Automatic RCD Test:
Yes
RCD Ramp Test:
Yes

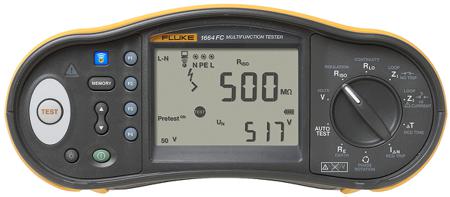

Model Number p:
1664FC
Insulation Test Voltage:
50 V, 100 V, 250 V, 500 V, 1000 V
Maximum Voltage Measurement:
500V ac/dc
Test Type:
Continuity, Frequency, Insulation Resistance, Loop and Line Resistance, Measure Motor Windings, Phase Sequence Test, Prospective Earth Fault Current, Prospective Short Circuit Current, RCD Test, Resistance, Voltage, Wiring Polarity
Earth Resistance Measurement:
Yes
Downloadable Data:
Yes
Interface Type:
BLE, USB
Continuity Test Current:
10mA
RCD Test Type:
A/F, AC, B/B+, G, S
Remote Switch Mode:
Yes
IP Rating:
IP40
Test Standards:
IEC 60364
Dimensions:
100 x 250 x 125mm
Height:
125mm
Plug Type:
UK
Weight:
1.3 (with Battery)kg
Safety Category Level:
CAT III, CAT IV
Maximum Continuity Resistance:
2000Ω
Minimum Continuity Resistance:
20Ω
Length:
100mm
Power Source:
Battery
Width:
250mm
Voltage Measurement Range:
50 → 1000V
Safety Category Voltage:
300 V, 500 V
Battery Type:
AA
Safety Category:
CAT III 500 V, CAT IV 300 V
