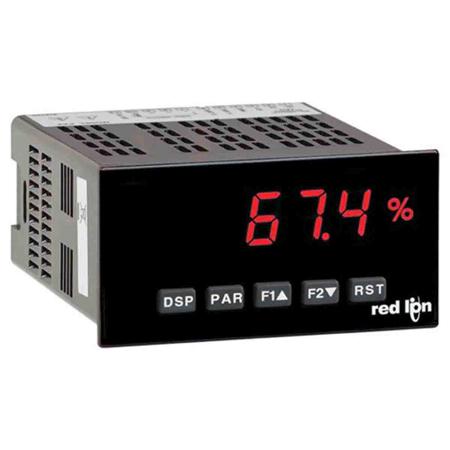

paxd0000 Red Lion PAX LED Digital Panel Multi-Function Meter for Current, Resistance, Voltage, 45mm x 92mm

Universal DC Input
4 Voltage (300 VDC Max) and 5 Current (2A DC Max) Ranges
3 Resistance Ranges - 10K ohm max
1/8 DIN (50 mm x 97 mm)
5 Digit, 0.56" (14 mm) LED
Red, Sunlight Readable Display
Field Upgradeable Option Cards
85 to 250 VAC Input Power

For more information please check the datasheets.

Red Lion PAX LED Digital Panel Multi-Function Meter for Current, Resistance, Voltage, 45mm x 92mm

Name: Red Lion PAX LED Digital Panel Multi-Function Meter for Current, Resistance, Voltage, 45mm x 92mm
Brand: Red Lion
SKU: ET19475481
Availability: InStock

Manufacturer:

Red Lion

Manufacturer Part No:

PAXD0000

Enrgtech Part No:

ET19475481

Warranty:

Manufacturer

SAR 1613.77

Checking for live stock

Properties Measured:

Current, Resistance, Voltage

Display Type:

LED

Cutout Height:

45mm

Cutout Width:

92mm

Number of Digits:

Depth:

104.1mm

Digit Height:

14.2 mm

Minimum Temperature:

0°C

Maximum Temperature:

+50°C

Measurement Range:

100 O → 10 kO, 200 μA → 2 A, 200 mV dc → 300 V dc

Minimum Measurement:

100 O, 200 μA, 200 mV dc

Series:

PAX

Datasheet PAXD0000-cf43469b(datasheets)

NOTICE This product is not for general use by consumers-e7e32d4f(datasheets)
