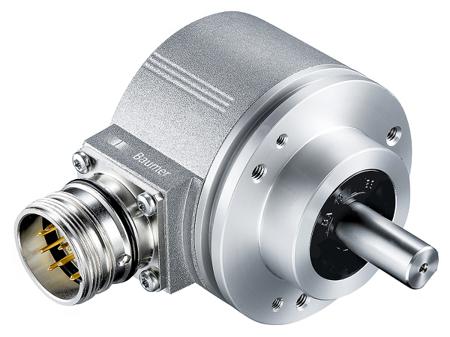

Baumer EIL580 Series Optical Incremental Encoder, 512 ppr, HTL/Push Pull Signal, Solid Type, 10mm Shaft

Baumer EIL580 Series Optical Incremental Encoder, 512 ppr, HTL/Push Pull Signal, Solid Type, 10mm Shaft

Manufacturer:

Manufacturer Part No:

EIL580-SC10.5FN.00512.A

Enrgtech Part No:

ET16812532

Warranty:

Manufacturer

SAR 198.20

Checking for live stock

Encoder Technology:

Optical

Series:

EIL580

Pulses Per Revolution:

±1.5 (Dual) V, 3 (Single) V

Maximum Revolutions:

12000rpm

Output Signal Type:

HTL/Push Pull

Shaft Type:

Solid

Shaft Diameter:

10mm

Supply Voltage:

8 → 30 V dc

IP Rating:

IP65

Overall Width:

58mm

Minimum Operating Temperature:

-40°C

Mounting Type:

Clamping Flange

0900766b8132a9a8.pdf(datasheets)
