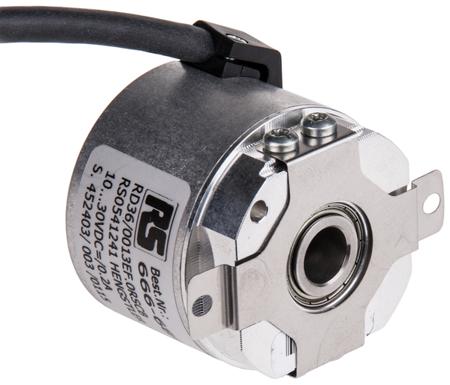

Hengstler AD36 Series Absolute Absolute Encoder, 2048 ppr, Gray, SSI Signal, Hollow Type, 8mm Shaft

Hengstler AD36 Series Absolute Absolute Encoder, 2048 ppr, Gray, SSI Signal, Hollow Type, 8mm Shaft

Manufacturer:

Manufacturer Part No:

AD36/0013EF.0RSCB

Enrgtech Part No:

ET100847253

Warranty:

Manufacturer

SAR 458.87

Checking for live stock

Encoder Technology:

Absolute

Series:

AD36

Pulses Per Revolution:

2048

Maximum Revolutions:

10000rpm

Output Signal Type:

Gray, SSI

Shaft Type:

7.2 x 3.5 x 7.5mm

Supply Voltage:

7 → 30 V dc

Shaft Diameter:

8mm

Resolution:

13 bit

IP Rating:

IP40

Overall Height:

32.8mm

Interface:

SSI-Gray

0900766b814b3af2.pdf(datasheets)
