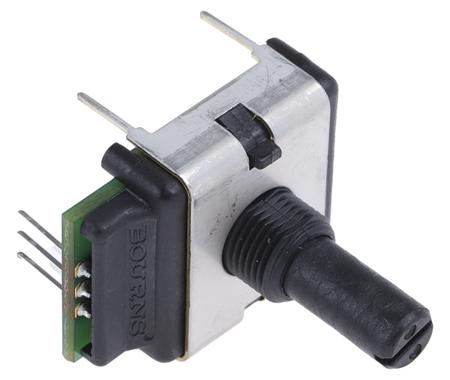

Bourns Incremental Incremental Encoder, 24 ppr, Quadrature Signal, Solid Type, 6.35mm Shaft

Bourns Incremental Incremental Encoder, 24 ppr, Quadrature Signal, Solid Type, 6.35mm Shaft

Manufacturer:

Manufacturer Part No:

ECW1J-B24-BC0024L

Enrgtech Part No:

ET100058339

Warranty:

Manufacturer

SAR 4.71

Checking for live stock

Encoder Technology:

Incremental

Pulses Per Revolution:

Maximum Revolutions:

120rpm

Output Signal Type:

Quadrature

Shaft Type:

Solid

Shaft Diameter:

6.35mm

Resolution:

2 bit

IP Rating:

IP40

Overall Height:

27.51mm

Overall Width:

28.49mm

Overall Depth:

23.37mm

Minimum Operating Temperature:

-40°C
