Channel Type:
Type N
Product Type:
Power MOSFET
Maximum Continuous Drain Current Id:
1.3A
Maximum Drain Source Voltage Vds:
30V

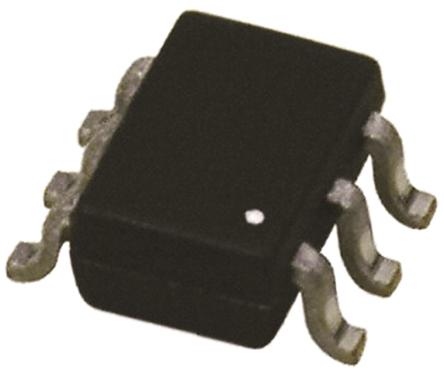

Package Type:
SC-88
Mount Type:
Surface
Pin Count:
6
Maximum Drain Source Resistance Rds:
335mΩ
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Maximum Power Dissipation Pd:
400mW
Typical Gate Charge Qg @ Vgs:
0.9nC
Forward Voltage Vf:
1.2V
Minimum Operating Temperature:
150°C
Maximum Operating Temperature:
-55°C
Transistor Configuration:
Isolated
Height:
1mm
Width:
1.35 mm
Standards/Approvals:
J-STD-020, MIL-STD-202, RoHS, UL 94V-0, AEC-Q101
Length:
2.2mm
Number of Elements per Chip:
2
Automotive Standard:
AEC-Q200, AEC-Q100, AEC-Q101
