Product Type:
MOSFET
Channel Type:
Type P
Maximum Continuous Drain Current Id:
-4.5A
Maximum Drain Source Voltage Vds:
20V

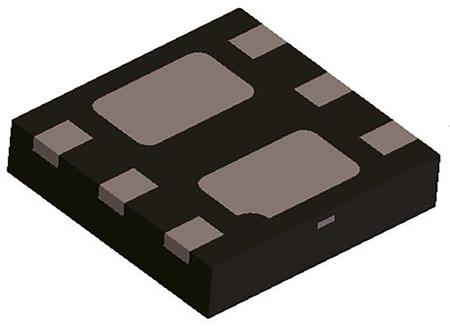

Package Type:
DFN
Mount Type:
Surface
Pin Count:
6
Channel Mode:
Enhancement
Maximum Power Dissipation Pd:
1.5W
Forward Voltage Vf:
-0.7V
Maximum Gate Source Voltage Vgs:
12 V
Typical Gate Charge Qg @ Vgs:
10.2nC
Minimum Operating Temperature:
150°C
Transistor Configuration:
Dual
Maximum Operating Temperature:
-55°C
Height:
0.56mm
Width:
2 mm
Length:
2mm
Standards/Approvals:
UL 94V-0, RoHS, AEC-Q101, J-STD-020, MIL-STD-202
Number of Elements per Chip:
2
Automotive Standard:
AEC-Q100, AEC-Q200, AEC-Q101
