Product Type:
MOSFET
Channel Type:
Type N
Maximum Continuous Drain Current Id:
460mA
Maximum Drain Source Voltage Vds:
50V
Series:
DMN53D0LDWQ

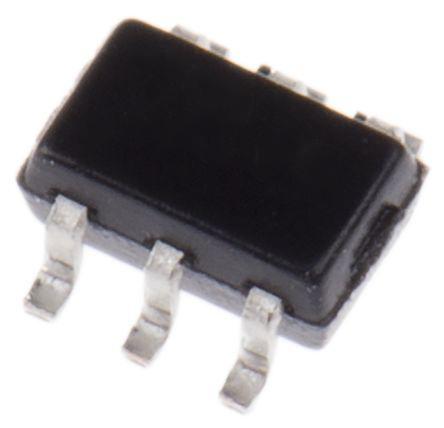

Package Type:
SOT-363
Mount Type:
Surface
Pin Count:
3
Maximum Drain Source Resistance Rds:
0.0016Ω
Channel Mode:
Enhancement
Typical Gate Charge Qg @ Vgs:
0.6nC
Minimum Operating Temperature:
-55°C
Forward Voltage Vf:
0.8V
Maximum Power Dissipation Pd:
310W
Maximum Gate Source Voltage Vgs:
20 V
Transistor Configuration:
Dual
Maximum Operating Temperature:
150°C
Width:
1.35 mm
Height:
0.95mm
Standards/Approvals:
J-STD-020, RoHS, MIL-STD-202, UL 94V-0, AEC-Q101
Length:
2.15mm
Number of Elements per Chip:
1
Automotive Standard:
AEC-Q200, AEC-Q100, AEC-Q101
