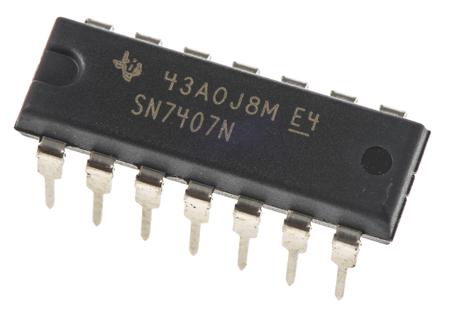

Texas Instruments SN7407N Hex-Channel Buffer & Line Driver, Open Collector, 14-Pin PDIP

Texas Instruments SN7407N Hex-Channel Buffer & Line Driver, Open Collector, 14-Pin PDIP

Manufacturer:

Manufacturer Part No:

SN7407N

Enrgtech Part No:

ET100510809

Warranty:

Manufacturer

SAR 1.34

Checking for live stock

Logic Family:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=80571&DisplayLogo=False

Logic Function:

Buffer, Driver

IC Type:

F Series FO-CAP

Number of Channels per Chip:

Input Type:

Single Ended

Output Type:

Open Collector

Polarity:

Non-Inverting

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

Maximum High Level Output Current:

-0.25mA

Maximum Low Level Output Current:

40mA

A700000006894267.pdf(datasheets)
