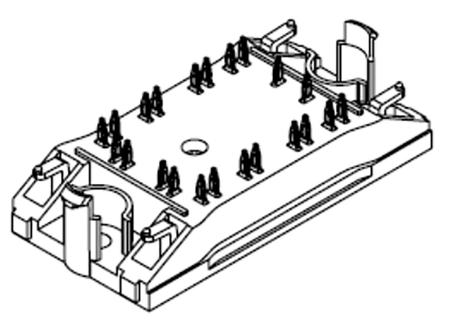

onsemi NXH100B120H3Q0PTG Dual IGBT Module 1200 V, 22-Pin Q0BOOST, Surface Mount

Manufacturer:

Manufacturer Part No:

NXH100B120H3Q0PTG

Enrgtech Part No:

ET100446786

Warranty:

Manufacturer

SAR 34.62

Checking for live stock

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

186 W

Package Type:

Q0BOOST

Configuration:

Dual

Mounting Type:

Surface Mount

Channel Type:

Pin Count:

Transistor Configuration:

Dual

Dimensions:

66.2 x 32.8 x 11.9mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+150 °C

A700000006564192.pdf(datasheets)
