1947078 Phoenix Contact
1947078 Phoenix Contact

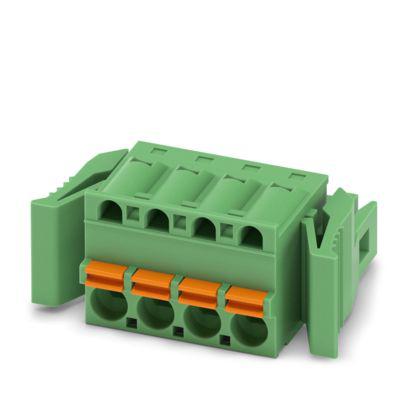

TERM BLOCK PLUG 4POS STR 5MM

Phoenix Contact 1947078

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1947078
Enrgtech Part No:
ET12427997
Warranty:
Manufacturer
SAR 2298.99
Checking for live stock
Mounting Type:
Latching
Pluggable Terminal Block Type:
Plug
Series:
5/..-ST-RF, FKC 2
Body Orientation:
Straight
Termination Method:
Push In Spring
Number of Rows:
1
Pitch:
5mm
Number of Contacts:
4
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screwless - Push-In Spring
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm
Type:
Plug, Female Sockets
Number of Positions:
4
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Latch Lock, Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON FKC
Positions Per Level:
4
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
pdf icon
Datasheet - 1947078(Technical Reference)
pdf icon
1947078(Datasheets)
pdf icon
Multiple Devices 11/Jun/2015(PCN Packaging)
