1828359 Phoenix Contact
1828359 Phoenix Contact
1828359 Phoenix Contact

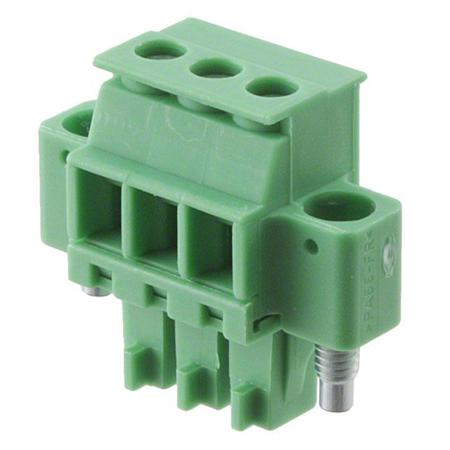

TERM BLOCK PLUG 3POS 3.81MM

Phoenix Contact 1828359

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1828359
Enrgtech Part No:
ET11739627
Warranty:
Manufacturer
SAR 98.15
Checking for live stock
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.14-1.5mm²
Plug Wire Entry:
90°
Insulation Height:
0.752" (19.10mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Number of Levels:
1
Wire Gauge or Range - AWG:
14-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.22-0.25 Nm (1.9-2.2 Lb-In)
standardLeadTime:
11 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MCVR
Positions Per Level:
3
Packaging:
Bulk
Header Orientation:
-
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Contact Material:
-
ECCN:
EAR99
pdf icon
1828359(Datasheets)
pdf icon
Design chg 07/APR/2022(PCN Design/Specification)
