1754465 Phoenix Contact
1754465 Phoenix Contact
1754465 Phoenix Contact

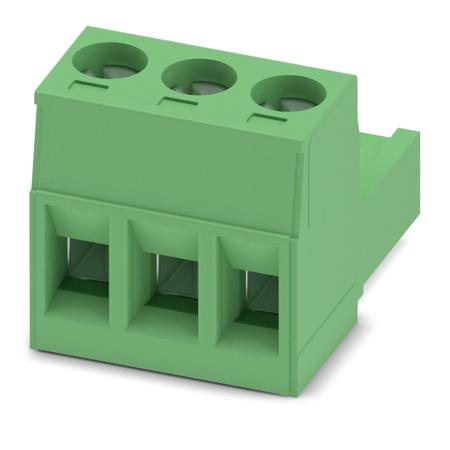

TERM BLOCK PLUG 3POS STR 5MM

Phoenix Contact 1754465

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1754465
Enrgtech Part No:
ET11438755
Warranty:
Manufacturer
SAR 1482.03
Checking for live stock
Current Rating:
12A
Mounting Type:
Plug-In
Voltage Rating:
320 V
Series:
MSTB 2.5/ 3-ST
Colour:
Green
Material:
Polyamide
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Number of Rows:
1
Pitch:
5mm
Number of Contacts:
3
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
3
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Unaffected
edacadModel:
1754465 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/260369
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
-
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
5 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MSTB
Positions Per Level:
3
Header Orientation:
-
Current - UL:
15 A
Wire Gauge or Range - AWG:
12-30 AWG
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
pdf icon
Datasheet 1754465(Technical Reference)
pdf icon
Design of the material displacement chg 18/JUL/2022(PCN Design/Specification)
pdf icon
Multiple Devices Approval Markings 19/Nov/2018(PCN Design/Specification)
pdf icon
Multiple Devices 11/Jun/2015(PCN Packaging)
Product Reviews
