1766990 Phoenix Contact
1766990 Phoenix Contact
1766990 Phoenix Contact
1766990 Phoenix Contact
1766990 Phoenix Contact
1766990 Phoenix Contact

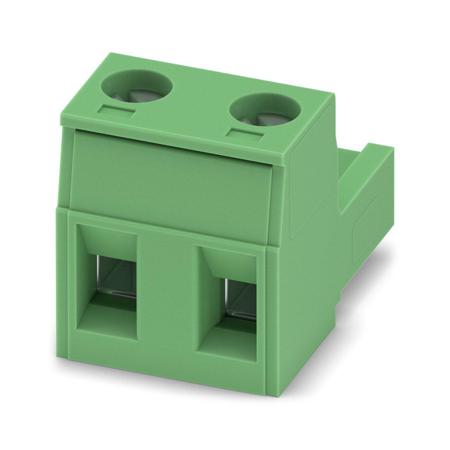

TERM BLOCK PLUG 2POS STR 7.62MM

Phoenix Contact 1766990

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1766990
Enrgtech Part No:
ET11237855
Warranty:
Manufacturer
SAR 1482.03
Checking for live stock
Current Rating:
12A
Mounting Type:
Cable Mount
Voltage Rating:
1 kV
Series:
GMSTB 2.5/ 2-ST-7.62
Colour:
Green
Material:
Nylon
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Number of Rows:
1
Contact Plating:
Tin
Pitch:
7.62mm
Number of Contacts:
2
Body Orientation:
Straight
Contact Material:
Copper Alloy
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
2
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Unaffected
edacadModel:
1766990 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/348835
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
-
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
8 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON GMSTB
Positions Per Level:
2
Header Orientation:
-
Current - UL:
15 A
Wire Gauge or Range - AWG:
12-30 AWG
Pitch:
0.300" (7.62mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
pdf icon
Line Drawing - 1766990(Technical Reference)
pdf icon
Datasheet 1766990(Technical Reference)
pdf icon
Multiple Devices Approval Markings 19/Nov/2018(PCN Design/Specification)
pdf icon
Multiple Devices Certification Marking 05/Mar/2018(PCN Design/Specification)
