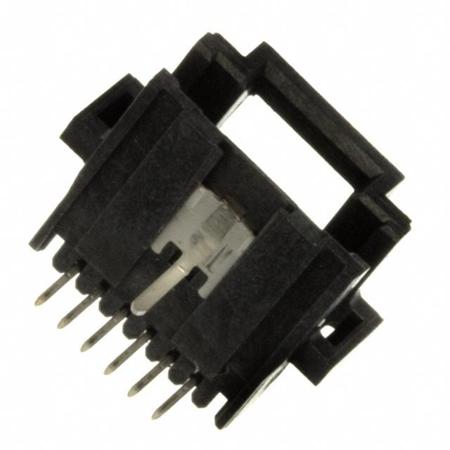

104074-8 TE Connectivity AMP Connectors
104074-8 TE Connectivity AMP Connectors

CONN HEADER 6POS .050 RTANG GOLD

TE Connectivity AMP Connectors 104074-8

Manufacturer:
TE Connectivity AMP Connectors
Manufacturer Part No:
104074-8
Enrgtech Part No:
ET13084490
Warranty:
Manufacturer
SAR 294.01
Checking for live stock
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
6
Contact Finish - Post:
Tin-Lead
Shrouding:
Shrouded - 2 Wall
Overall Contact Length:
-
Insulation Height:
0.190" (4.83mm)
Voltage Rating:
30VAC
REACH Status:
REACH Affected
edacadModel:
104074-8 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/469887
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.125" (3.18mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.100" (2.54mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
AMPMODU System 50
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
104074
ECCN:
EAR99
