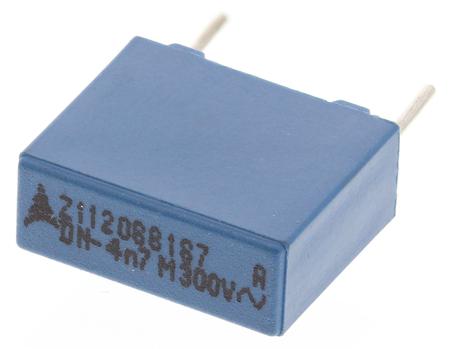

Capacitance:
4.7nF
Voltage:
300V ac
Mounting Type:
Through Hole
Tolerance:
±20%
Series:
B32021
Lead Pitch:
10mm
Length:
13mm
Depth:
5mm
Height:
11mm
Dimensions:
13 x 5 x 11mm
Dielectric:
Polypropylene
Terminal Type:
Through Hole
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+110°C
Lead Diameter:
0.6mm
Product Type:
32 Bit Microcontroller
Series:
SAMA7G5
Package Type:
TFBGA
Mount Type:
Surface
Pin Count:
240
Device Core:
ARM926EJ-S
Data Bus Width:
32bit
Program Memory Size:
128kB
Interface Type:
SPI, TWIHS, UART, USB, MIPI, I2S, MMC, Ethernet, CSI, CAN FD, PWM, QSPI
Maximum Clock Frequency:
1GHz
RAM Size:
128kB
Maximum Supply Voltage:
5.5V
Analogue Comparators:
4
Minimum Operating Temperature:
-40°C
Number of Programmable I/Os:
136
Maximum Operating Temperature:
125°C
Standards/Approvals:
AEC-Q006, AEC-Q100 Grade 2, FIPS PUB 140-2, FIPS PUB 140-3, FIPS PUB 197, FIPS PUB 46-3, FIPS Publications 180-2, IEEE1588, IEEE802.1AS, IEEE802.1Qav, IEEE802.3az, NIST SP 800-22
Width:
14 mm
Height:
1.2mm
Length:
14mm
Minimum Supply Voltage:
2.7V
Instruction Set Architecture:
ARM
Automotive Standard:
AEC-Q100 Grade 2
Program Memory Type:
SRAM
Number of Timers:
6
