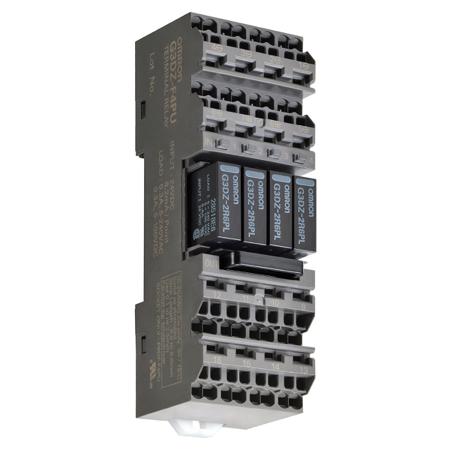

g3dz-f4pu-dc24 Omron Solid State Relay, DIN Rail Mount, 24V dc Coil, SPST, 4-Pole, 100 μA → 0.3 A Load
g3dz-f4pu-dc24 Omron Solid State Relay, DIN Rail Mount, 24V dc Coil, SPST, 4-Pole, 100 μA → 0.3 A Load

Omron Solid State Relay, DIN Rail Mount, 24V dc Coil, SPST, 4-Pole, 100 μA → 0.3 A Load

Omron Solid State Relay, DIN Rail Mount, 24V dc Coil, SPST, 4-Pole, 100 μA → 0.3 A Load

Manufacturer:
Omron
Manufacturer Part No:
G3DZ-F4PU DC24
Enrgtech Part No:
ET18075512
Warranty:
Manufacturer
SAR 180.08 SAR 180.08
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
SPST
Mounting Type:
DIN Rail
Number of Poles:
4
Load Current Rating:
100 μA → 0.3 A
Load Voltage Rating:
3 → 125 V dc, 3 → 264 V ac
Maximum Input Voltage:
28.8V dc
Minimum Input Voltage:
19.2V
Terminal Type:
PCB Pin
Depth:
35mm
Height:
100mm
Length:
31mm
Input Current:
8.2mA
Relay Switching Classification:
Solid State Relay
Dimensions:
31 x 35 x 100mm
Minimum Operating Temperature:
-25°C
Special Features:
5 A Rating by Optimal Designs for Wide Variety of Applications, Diode for Coil Surge Absorption, Double Wire Method Enables Branch Wiring, Each Relay has Independent Coils and Contacts for PLC Output Compatible, IP20 Protection Code for Push-In Plus models, LED Operation Indicator, Push-In Plus Terminal Enables Work Reduction and Requires no Retightening, Short Bars, TUV Certification for Push-In Plus Terminal, UL and CSA Certification for Standard Models, VDE Certification for Screws Terminal
Input Voltage Range:
19.2 → 28.8V dc
Control Resistance:
2.4 (Output)Ω
Maximum Operating Temperature:
+55°C
Operating Temperature Range:
-25 → +55°C
pdf icon
0900766b816f9cc8.pdf(datasheets)
