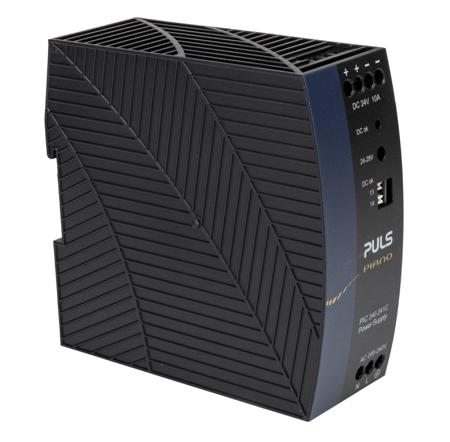

Series:
PIANO
Type:
Switched Mode
Electrical Phase:
1
Number of Outputs:
1
Input Voltage:
230V ac
AC or DC Output Voltage:
dc
Output Voltage:
24V dc
Output Current:
10A
Dimensions:
49 x 124 x 124mm
Height:
124mm
Width:
49mm
Depth:
124mm
Standards Met:
CE Certified, cULus Listed, cULus Recognised, EN 50178, EN 55011, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-3, EN 61000-6-4, FCC, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 62103, IEC/CISPR 16-1-2, IEC/CISPR 16-2-1, LVD, MIL HDBK 217F, SEMI F47 0706, UL 508, UL 60950-1, VDE 0160
Mounting Type:
DIN Rail Mount
Minimum Temperature:
-10°C
Maximum Temperature:
+70°C
Output Voltage Adjustment Range:
24 → 28V
Ripple And Noise:
100mV Pk-Pk
MTBF:
1588000h
Special Features:
Compact Design, Cost Effective Design, DC OK Relay Contact
Load Regulation:
150mV
