cs10241 PULS DIMENSION C-Line Switched Mode DIN Rail Power Supply, 100→120V ac ac Input, 24V dc dc Output, 10A Output,
cs10241 PULS DIMENSION C-Line Switched Mode DIN Rail Power Supply, 100→120V ac ac Input, 24V dc dc Output, 10A Output,
cs10241 PULS DIMENSION C-Line Switched Mode DIN Rail Power Supply, 100→120V ac ac Input, 24V dc dc Output, 10A Output,
cs10241 PULS DIMENSION C-Line Switched Mode DIN Rail Power Supply, 100→120V ac ac Input, 24V dc dc Output, 10A Output,

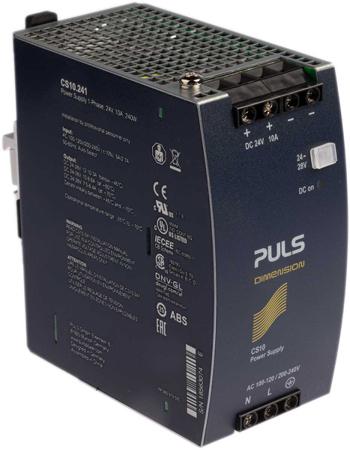

PULS DIN Rail Power Supply The PULS DIMENSION C-Line series single-phase DIN-rail switch-mode power supply has an output voltage of 24VDC at 10A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. The auto-select input voltage rating ranging between 100VAC and 120VAC/200VAC and 240VAC. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. It has high immunity to power surges as well as low electromagnetic emission.
Note:
Power de-rating between 60°C and 70°C Features and Benefits Slim design
20% output power reserves up to 45°C is continuously allowed
Wide range auto select input
High efficiency up to 91.6%
Power rating is 240W
Ripple factor and noise is 50mVpp
Excellent partial load efficiency
Minimal inrush current surge
Easy fuse breaking due to high overload peak current
Large screw terminals
Operation temperature ranges between -25°C and 70°C Applications Industrial control
Automation
Communication and instrumentation equipment Certifications IEC
UL approved
EN
SELV
EAC
GL
CE certified

PULS DIMENSION C-Line Switched Mode DIN Rail Power Supply, 100→120V ac ac Input, 24V dc dc Output, 10A Output,

Manufacturer:
PULS
Manufacturer Part No:
CS10.241
Enrgtech Part No:
ET16798928
Warranty:
Manufacturer
SAR 1023.30
Checking for live stock
Series:
DIMENSION C-Line
Type:
Switched Mode
Electrical Phase:
1
AC or DC Input Voltage:
ac
Number of Outputs:
1
Input Voltage:
100→120V ac
AC or DC Output Voltage:
dc
Output Voltage:
24V dc
Output Current:
10A
Power Rating:
240W
Dimensions:
60 x 124 x 117mm
Width:
60mm
Depth:
117mm
Height:
124mm
Maximum Temperature:
+70°C
Load Regulation:
100mV
MTBF:
1393000h
Minimum Temperature:
-25°C
Ripple And Noise:
50mV Pk-Pk
Mounting Type:
DIN Rail Mount
pdf icon
C- Series DC Power Supply Instructions-111ad86a(datasheets)
pdf icon
Datasheet-0e42ea63(datasheets)
