Series:
QUINT POWER
Type:
Switched Mode
Electrical Phase:
1
Number of Outputs:
1
AC or DC Input Voltage:
ac, dc
Input Voltage:
100 → 240 V ac / 110 → 250V dc
AC or DC Output Voltage:
dc
Output Voltage:
48V dc
Output Current:
10A
Dimensions:
70 x 125 x 130mm
Width:
70mm
Height:
130mm
Depth:
125mm
Output Voltage Adjustment Range:
48 → 56V
Hazardous Area Certification:
Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D
Special Features:
Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface
Maximum Temperature:
+70°C
Standards Met:
cUL, cUL Recognised, cULus, EAC, IECEE CB Scheme, UL, UL Recognised
MTBF:
1100000 h @25 °C, 317000 h @ 60 °C, 676000 h @ 40 °C
Minimum Temperature:
-25°C
Model:

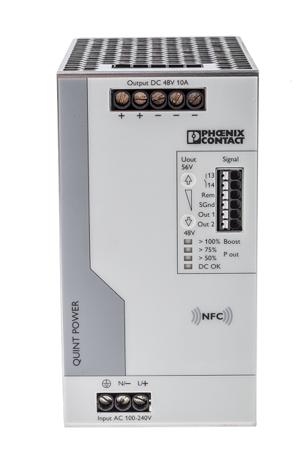

QUINT4-PS/1AC/48DC/10
Efficiency:
95%
Ripple And Noise:
70mV Pk-Pk
Mounting Type:
DIN Rail Mount
