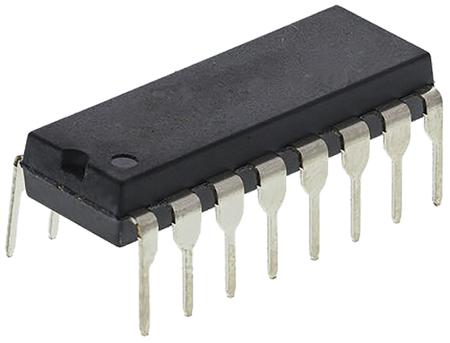

Maxim Integrated, DAC Quad 12 bit- ±1.5LSB Serial (SPI/QSPI/Microwire), 16-Pin PDIP

Maxim Integrated , DAC Quad 12 bit- ±1.5LSB Serial (SPI/QSPI/Microwire), 16-Pin PDIP

Manufacturer:

Manufacturer Part No:

MAX536ACPE+

Enrgtech Part No:

ET101048011

Warranty:

Manufacturer

SAR 60.30

Checking for live stock

Architecture:

R-2R, Resistor String

Resolution:

12 bit

Full Scale Error:

±1.5LSB

Integral Nonlinearity Error:

±1LSB

Number of DAC Channels:

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

Maximum Settling Time:

3µs

Digital Interface Type:

Serial (SPI/QSPI/Microwire)

Output Polarity:

Unipolar

Voltage Reference:

External

0900766b80ac5966.pdf(datasheets)
