Model Number:

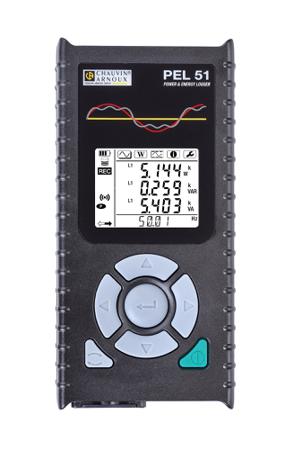

PEL51
Number of Input Channels:
1V / 1I
Sensor Type:
Current, Voltage Sensors
Measurement Parameters:
Current, Energy, Frequency, Harmonics, Power, Voltage
Interface Type:
Wi-Fi
Data Logger Type:
Power & Energy
Maximum Voltage Measurement:
600V
Minimum Temperature Measurement:
-20°C
Power Source:
Battery and Self-powered by Phase
IP Rating:
IP54
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
50°C
Maximum Current Measurement:
3000A
Display Type:
Multi-display Backlit LCD
Model Number p:
PEL51
Best Current Measurement Accuracy:
± 0.3% R
Battery Type:
NiMH
Includes:
PEL 51 Power Logger delivered with 1 bag, 1 SD card, red banana voltage lead, black banana voltage lead, MA194-250 flexible AC current sensor, 2 crocodile clips (R/B), 1 Type-C7 power supply cable, C8 adapter, Safey datasheet, Test report, Multilingual Quick Start Guide, software available for doxnload from our website
Best Voltage Measurement Accuracy:
± 0.2% R ± 0.2 V
Number of Readings Per Channel:
1 measurement / s
Dimensions:
180 x 88 x 37mm
Current Measurement Resolution:
1 mA
Battery Life:
1 h
