Model Number:
PEL52
Number of Input Channels:
2V / 2I
Measurement Parameters:
Current, Energy, Frequency, Harmonics, Power, Voltage
Sensor Type:
Current, Voltage Sensors
Interface Type:
Bluetooth, USB, Wi-Fi
Data Logger Type:
Power & Energy
Calibrated:
RSCAL
Maximum Voltage Measurement:
600V
Power Source:
Battery and Self-powered by Phase
IP Rating:
IP54
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
50°C
Maximum Current Measurement:
3000A
Display Type:
Multi-display Backlit LCD
Dimensions:
180 x 88 x 37mm
Includes:

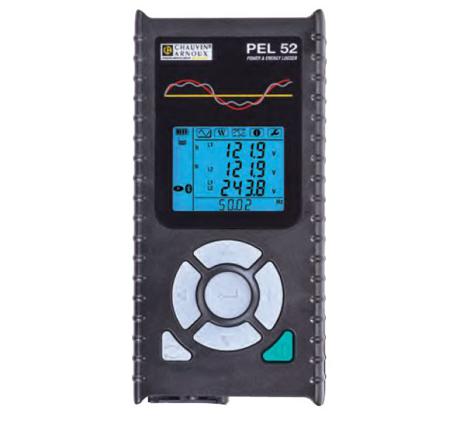

PEL 52 Power Logger delivered with 1 SD card, red banana voltage lead, black banana voltage lead, blue banana voltage lead, 3 crocodile clips, 1 Type-C7 power supply cable, C8 adapter, Safey datasheet, Test report, Multilingual Quick Start Guide, software available for doxnload from our website
Battery Type:
NiMH
Number of Readings Per Channel:
1 measurement / s
Model Number p:
PEL52
Best Current Measurement Accuracy:
± 0.3% R
Best Voltage Measurement Accuracy:
± 0.2% R ± 0.2 V
Current Measurement Resolution:
1 mA
