Model Number:
PEL113
Number of Input Channels:
7
Sensor Type:
Current, Voltage Sensors
Measurement Parameters:
Current, Energy, Frequency, Harmonics, Power, Voltage
Interface Type:
Ethernet, IRD Server, USB, Wifi
Data Logger Type:
Power & Energy
Maximum Voltage Measurement:
1000V
Power Source:
Battery and Self-powered by Phase
IP Rating:
IP54
Minimum Operating Temperature:
0°C
Maximum Operating Temperature:
+50°C
Maximum Current Measurement:
10 000A
For Use With:
PEL113
Display Type:
Quadruple Digital Display LCD
Current Measurement Resolution:
1 mA
Best Current Measurement Accuracy:
± 0,3%
Model Number p:
PEL113
Includes:

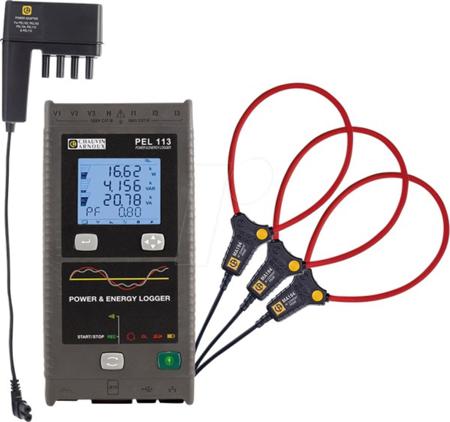

Power Energy Logger PEL113, 1 carrying bag, 4 voltage cables, 3 flexible current sensors MA194-350, PEL main adapter, 4 crocodile clips, 1 set of inserts/ rings, 1 SD card, 1 SD Card-USB adapter, 1 USB cable, 1 main cable, PEL TRANSFER PC software & User’s Manual downloadable from our website, 1 Quick Start Guide
Battery Type:
Rechargeable NiMH battery
Alarm:
Yes
Number of Readings Per Channel:
5 readings / s
Best Voltage Measurement Accuracy:
± 0.2% R ± 0.2 V
Dimensions:
265 x 125 x 37mm
