Model Number:

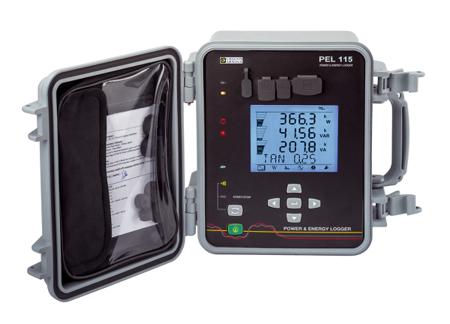

PEL 115
Number of Input Channels:
4V / 4I
Sensor Type:
Current, Voltage Sensors
Interface Type:
Ethernet, IRD Server, USB, Wifi
Data Logger Type:
Power & Energy
Maximum Voltage Measurement:
1000V
Power Source:
Battery and Self-powered by Phase
IP Rating:
IP67
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+50°C
Maximum Current Measurement:
10 000A
For Use With:
PEL115
Current Measurement Resolution:
1 mA
Model Number p:
PEL115
Includes:
A PEL 115 is delivered with 1 bag for the accessories, 5 x IP67 voltage cables, 5 lockable crocodile clips, 1 set of inserts/rings, 1 SD card, 1 SD Card-USB adapter, 1 USB cable, PEL TRANSFER PC software & User’s Manual downloadable from our website, 1 Quick Start Guide.
Best Current Measurement Accuracy:
± 0,3%
Alarm:
Yes
Best Voltage Measurement Accuracy:
± 0.2% R ± 0.2 V
Number of Readings Per Channel:
5 readings / s
Dimensions:
245 x 270 x 180mm
Battery Type:
Rechargeable NiMH battery
